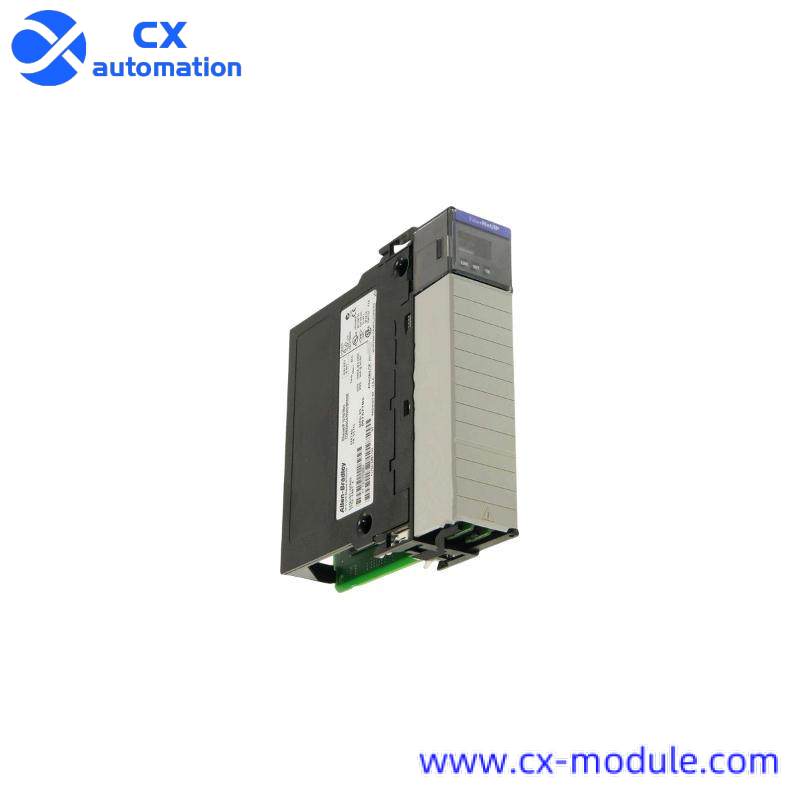

Allen Bradley 1756-ENBT/A Ethernet/IP Communication Bridge Module

Model Type:Communication Bridge Module

Model Number:1756-ENBT/A

Manufacturer:Allen Bradley

Communication Protocol:Ethernet/IP

Connection Interface:Ethernet

Mounting:Chassis

Communication Speed:10/100 Mbps

Power Supply:3 MA at 24 VDC

Enclosure Type:Open Type

Temperature Rating:0 – 60 °C

Power Dissipation:5.1 W

Isolation:Continuous, 30 V

Environmental Conditions:5 – 95% non-condensing relative humidity

Vibration Resistance:2 G

Shock Resistance:30 G

USB Port:Available

Compliance Standards:IEEE 802.3 compliant shielded or unshielded twisted pair cables

    The Allen Bradley 1756-ENBT/A Ethernet/IP Communication Bridge Module is designed to optimize industrial automation systems by providing a robust connection between ControlLogix PLCs and Ethernet/IP networks. This ensures rapid and reliable data transmission, critical for efficient operation in manufacturing and industrial settings.

    With an open type enclosure, the module offers versatile mounting options, allowing for easy integration into diverse control panel configurations. Its compatibility with shielded or unshielded twisted pair cables ensures a stable connection, even in environments with high levels of electromagnetic interference.

    Operating within a temperature range of 0 to 60 degrees Celsius, this module is engineered to withstand challenging industrial conditions, maintaining its performance under varying environmental pressures. Its low power dissipation (5.1 W) contributes to energy efficiency, reducing operational costs.

    Featuring resistance to vibrations and shocks up to 2 G and 30 G respectively, the Allen Bradley 1756-ENBT/A is built to endure the rigors of industrial applications, ensuring minimal downtime and enhanced reliability.

    Despite its impressive technical capabilities, the module maintains a compact size, minimizing its impact on valuable space within control cabinets. Moreover, its lack of a USB port aligns with the primary purpose of connecting to Ethernet/IP networks, focusing resources on achieving optimal network performance.
